We are happily serving various Industries since 1992 with our Expert Hydraulic Engineering team and state of Art Manufacturing unit at Mahape Navi Mumbai.
Customers follow API 653 or OISD Above-ground storage tank construction use our Jacking system.
EPC companies just relax because they trust us for their lifting solutions. we provide a complete solution which includes preparation of Job hazard analysis, stability calculation, and so on. We consider ourselves as partners to the project execution team and consider our job done only after the tank is erected safely and efficiently.
We believe in setting trends and in providing the best-in-class products and services to our esteemed customers.

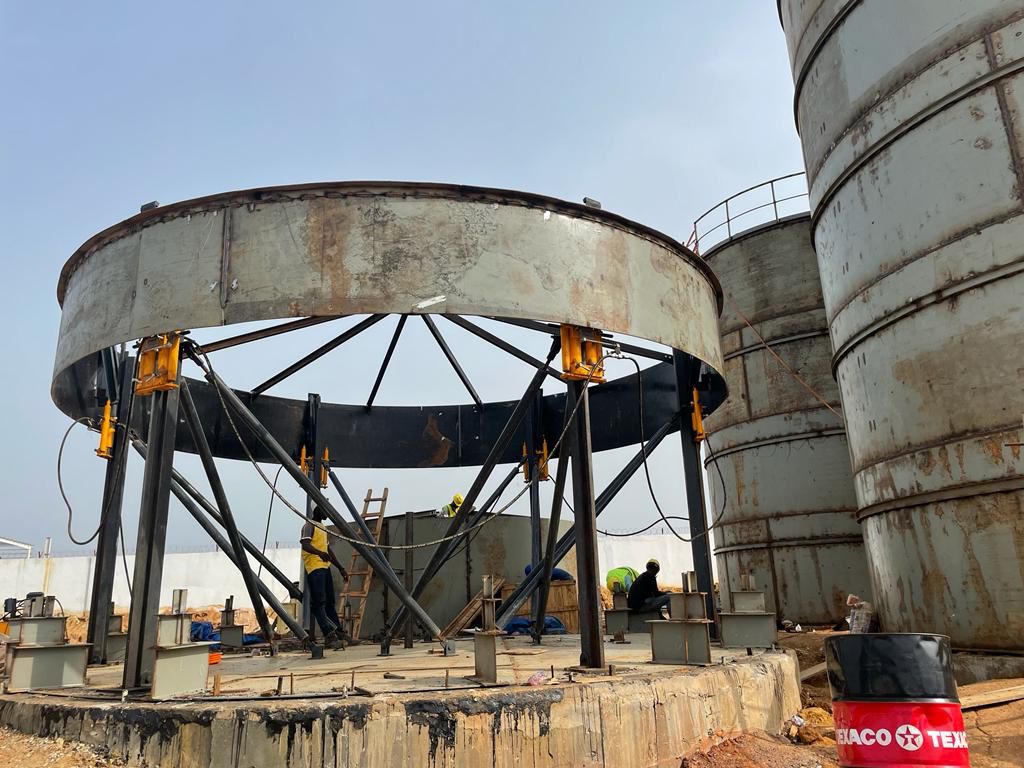

Hydraulic Tank Jacking Equipment systems applications :

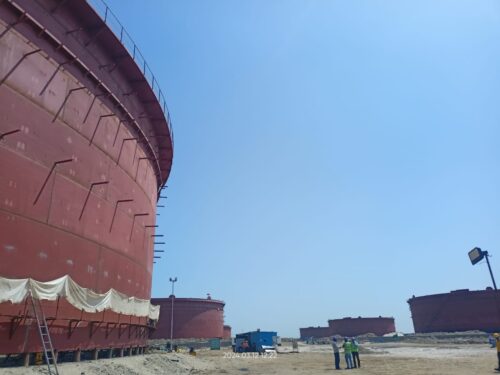

Building of field erected storage tanks
Increase tank capacity by adding shell rings or courses
Dismantling of old tanks
Repair or replacement of tank bottom plate
Repair to tank foundation
Features:
Upright height 3500 mm
High-pressure hose coupling
Sturdy construction
Other Details:
Upright, Height 3, 500 mm
Adjustable stay
Base plate with attachment for upright
Jack rod
Hydraulic jack
Slipper
Lifting arm
Lifting lug (welded to shell plate)
Guide (welded to shell plate)
Shut-off cock coupling for high-pressure hose
Shell plate
Stay lug (welded to base plate).
Technical Specifications:
12 MT, 18 MT, 25 MT & 50MT Capacity
Standard models are suitable for 2500 mm shell width plates.
Special models are available or higher shell width plate up to 3000 mm.
Tested at 1.5 times rated capacity
Manufactured under strict quality control norms
Trained Jack Operators/Technicians are deputed for operation.
